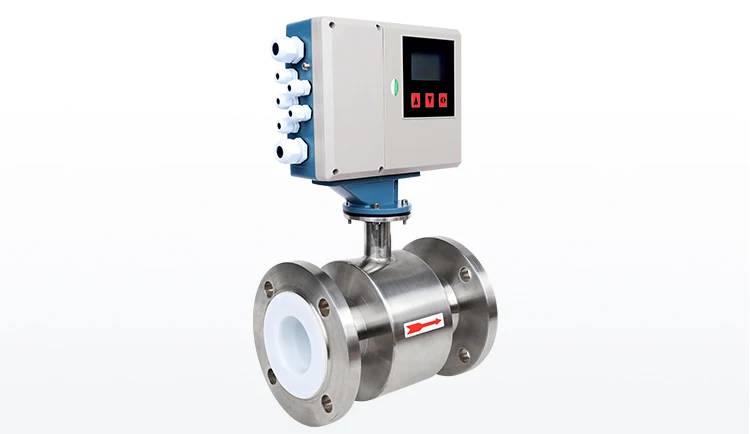

Reasonably priced hot or cold water electromagnetic calorimeter

FOB Reference Price:Get Latest Price
US $300-500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
AFT
Model Number:
AFTLD
Product Name:
Reasonably priced hot or cold water electromagnetic calorimeter
Medium:
Liquid;cold water ;hot water
Material:
Carbon Steel
Power supply:
220VAC/ 24VDC
Pressure:
1.6-6.4mpa
Accuracy:
0.5%
Output:
4-20mA /RS485
Liner material:
PTFE/PFA/F46/Neoprene/Polyurethane
Electrode material:
316L/Hastelloy C22 / Platinum / Titanium / Tantalum
Connection:
Flange: DN6-DN3000
Supply Ability
Supply Ability:
5000 Set/Sets per Year Reasonably priced hot or cold water electromagnetic calorimeter
Packaging & Delivery
Packaging Details
Reasonably priced hot or cold water electromagnetic calorimeter: Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Port
Qingdao/Shanghai/Tianjin/Dalian
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 5 To be negotiated

Reasonably priced hot or cold water electromagnetic calorimeter



Product Description







Reasonably priced hot or cold water electromagnetic calorimeter



       AFTLD series of Reasonably priced hot or cold water electromagnetic calorimeter measures the heat which is released by the heat transfer fluid in heat transfer system.It uses the high precision and high reliability electromagnetic flowmeter for flow measuring,and platinum thermal resistance for temperature measurement.That makes the calorimeter has very excellent measurement performance.
 Technical parameters of Reasonably priced hot or cold water electromagnetic calorimeter:

Caliber
DN6-DN3000mm
Nominal Pressure
0.6-4.0Mpa (Special pressure can be made to )
Accuracy
±0.5 of the  value displayed ,±0.3% or ±0.2% are selectable
Liner material
Teflon,PFA ,F46,Neoprene ,Polyurethane
Electrode type
General type,scraper type and replaceable type
Medium temperature
Integrate type:-20℃~+60℃
Remote type:Neoprene & Polyurethane Liner:-20℃~+60℃
                    PTFE liner /PFA Liner /F46 Liner:-40℃~+180℃
Ambient temperature
-25℃~+60℃
Ambient humidity
5-100%RH(relative humidity)
Medium electrical conductivity
≥20μs/cm
Measuring range
1500:1,flow rate <15m/s
Structure type
Integrate type, remote type ,submersible type ,ex-proof type
Protection class
IP65,IP68(Optional)
Ex-proof Mark
ExmdΙΙBT4
Product standard
JB/T9248-1999 Electromagnetic Flow meter

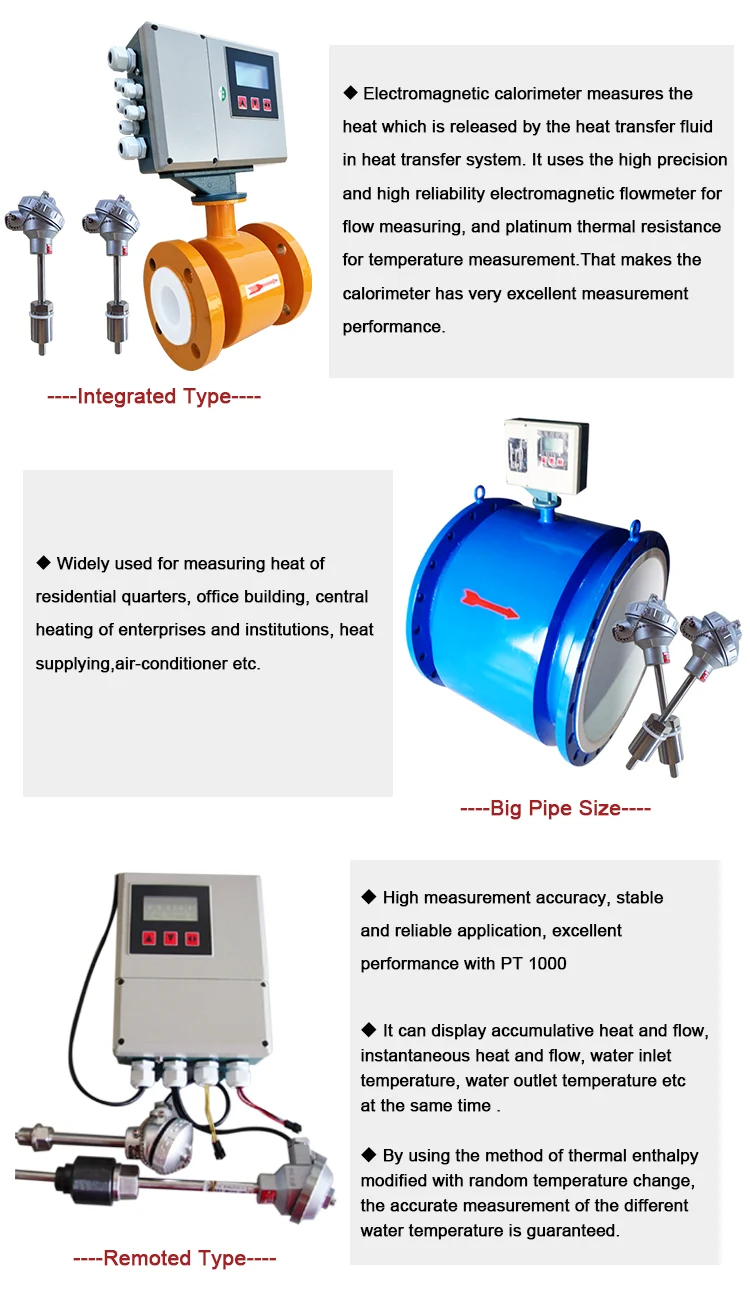

Detail Image
