dc24v open channel ultrasonic measurement flow meter

FOB Reference Price:Get Latest Price
US $300-500 / Sets | 1 Set/Sets dc24v open channel ultrasonic measurement flow meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
AFT
Model Number:
AFT-MF
Medium:
Liquid;sea water;river water;sewage
Power supply:
220VAC/AC160V~250v
Output:
RS485/RS232/4~20mA
measuring range:
0~93m3/s
Display:
LCD Digital
Pressure:
Normal pressure
Environment humidity:
≤85RH
Connection:
thread
Material:
ABS Engineering plastics
Product Name:
dc24v open channel ultrasonic measurement flow meter
Supply Ability
Supply Ability:
5000 Set/Sets per Year dc24v open channel ultrasonic measurement flow meter
Packaging & Delivery
Packaging Details
dc24v open channel ultrasonic measurement flow meter:Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Port
Qingdao/Shanghai/Tianjin/Dalian
Lead Time :
Within 5-7 days after receiving the payment
Video Description

dc24v open channel ultrasonic measurement flow meter

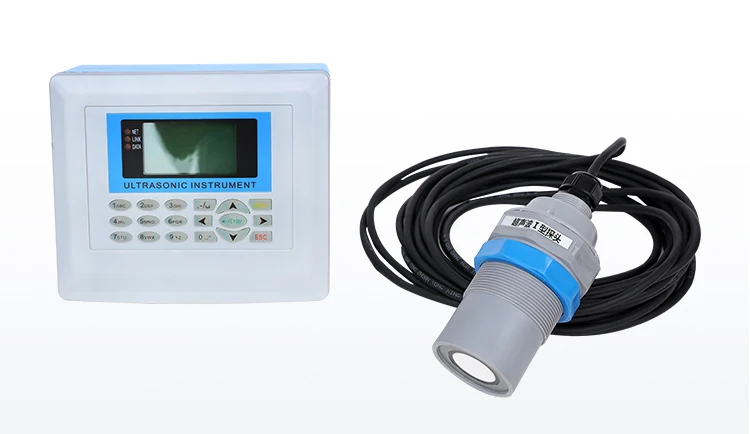

open channel ultrasonic flow meter1.jpg

Product Description



What is the open channel ultrasonic flow meter?

     Open channel flow meter is a high precision using the ultrasonic measurement of Venturi channels or other flow meter, ultrasonic measurement in contact with the channel surface bounce back after the time, then according to the formula to calculate the channel flow, it can provide output flow, the flow rate and total flow.

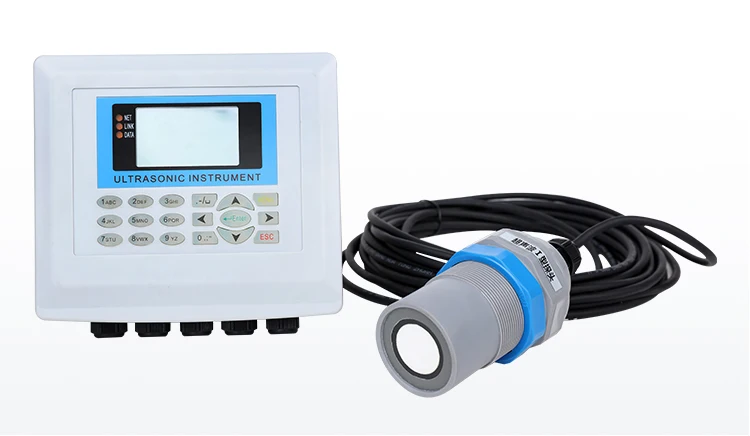

open channel ultrasonic flow meter_06.jpgopen channel ultrasonic flow meter_08.jpg

Product description of open channel ultrasonic flow meter

  .png

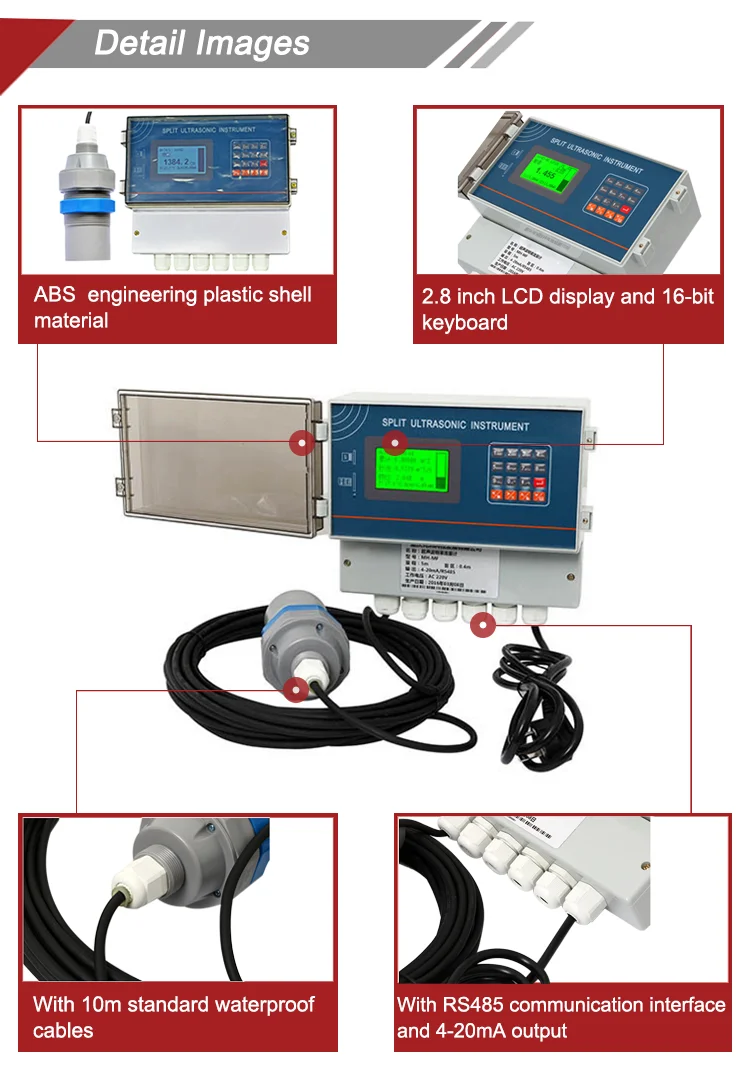

Detail Image

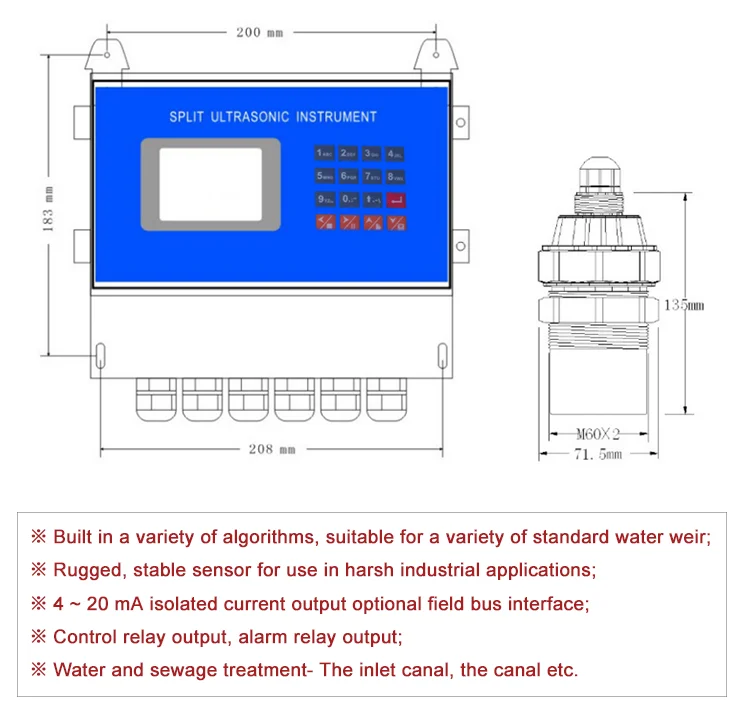

.png

Technical parameters of open channel ultrasonic flow meter

Flow range

0~93m3/h(And determine the range with weir tank specifications)

Weir trough type

Triangular weir, Rectangular weir, Full width weir, Parshall flume

Display accuracy

Depending on the input signal. The flow error related with weir trough:

Triangular weir :1~2%; Rectangular weir: 1~4%; Parshall flume: 3%

Display

2.8 inches LCD display, it can display height of liquid level, Instantaneous flow rate, cumulative flow, time flow, daily flow, year flow, month flow, date, month and year, the battery level (Can be arbitrarily set)

Signal output

4-20mA, RS485/ RS232

Relay

contact capacity

AC:5A 120V DC:10A 24V

Power supply

Working power: DC24V, or AC 160V-250V

Normal power: <5 W

Physical property

Main body shape size: 240*184*110 mm;

Shell material: ABS

Transducer: PP

Connection: Thread or Screw fixation;

Installation: Screw M48*1.5

Keyboard: Five bit chip key

Sensor wire: 10M (Optional)

Environmental performance

Working temperature: 0~50℃

Ambient humidity: ≤85RH

Pressure: normal pressure

Data storage

The past 168 hour flow. The past 31 days flow. The past 36 months flow and The past 10 years flow

Optional instruments

Micro printer: 12V Battery

Level gauge lead: The most remote can be connected to 1000 meters, need to be set by yourself.

Minimum display resolution: 1MM

Temperature compensation: Automatic temperature compensation

Working frequency: 20KHZ~200KHZ (related to different models and specifications)

Locale setting: Through the machine button to complete

calibration: Factory calibration,also can on site calibration

Display: 3 lines LCD display

Support data collection

Project Case



open channel ultrasonic flow meter.png
