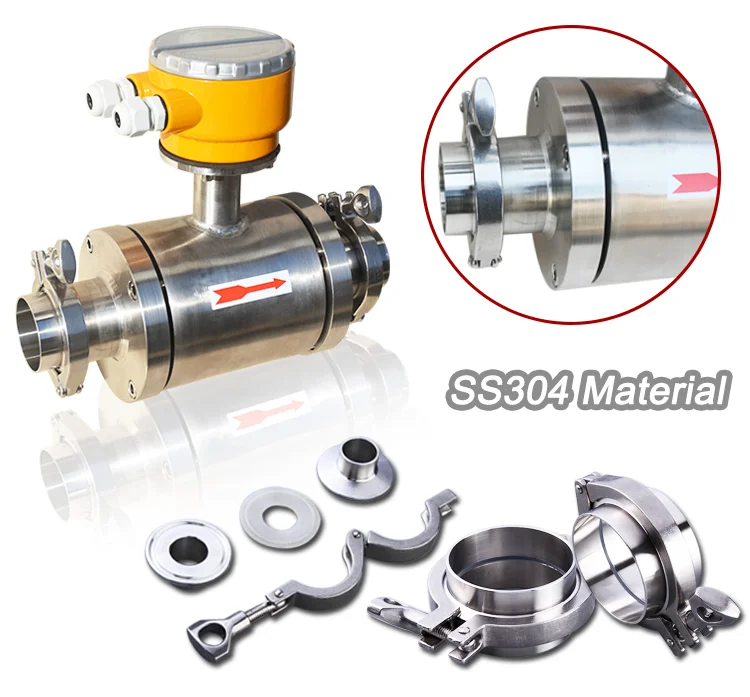

All 304 material milk electromagnetic flowmeter

FOB Reference Price:Get Latest Price
US $300-500 / Sets | 1 Set/Sets All 304 material milk electromagnetic flowmeter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
AFT
Model Number:
AFTLD
Product Name:
All 304 material milk electromagnetic flowmeter
Medium:
Liquid;milk
Accuracy:
0.5%
Material:
stainless steel;304
Output:
4-20mA /RS485
Power supply:
220VAC/ 24VDC
temperature:
0-180℃
Liner material:
PTFE/PFA/F46/Neoprene/Polyurethane
Electrode material:
316L/Hastelloy C22 / Platinum / Titanium / Tantalum
Connection:
DN6-DN3000
SupplyAbility
SupplyAbility:
5000 Set/Sets per Year All 304 material milk electromagnetic flowmeter
Packaging & Delivery
Packaging Details
All 304 material milk electromagnetic flowmeter : Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Port
Qingdao/Shanghai/Tianjin/Dalian
Lead Time :
Within 5-7 days after receiving the payment

All 304 material milk electromagnetic flowmeter



 flow meter4.png
Product Description

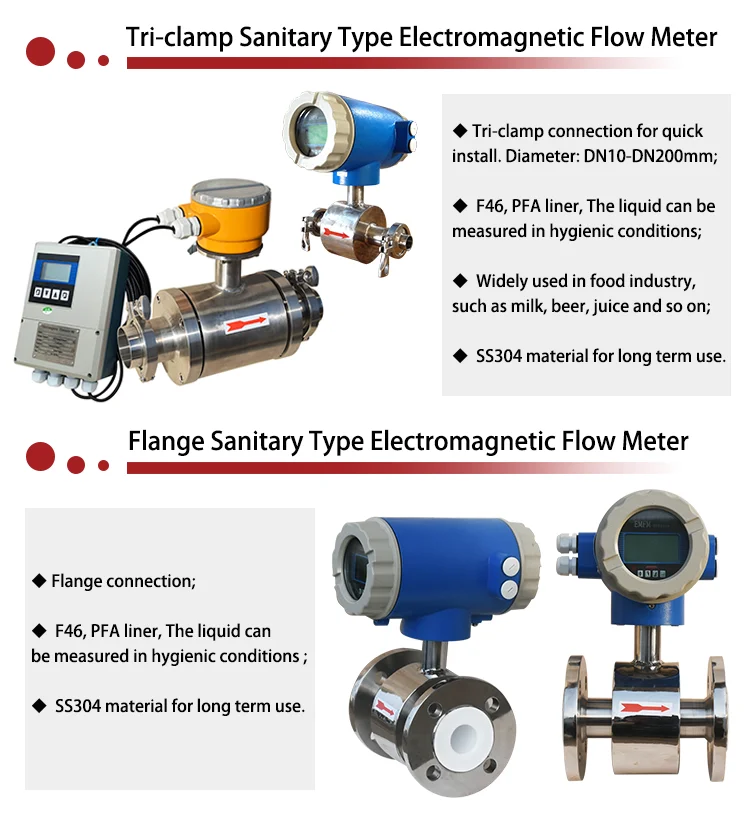

Related products of flowmeter

 .png

Detail images of flowmeter



Technical Parameters



Technical parameters of flowmeter

Caliber(mm)

DN10~DN200

Nominal pressure

0.6~1.6MPa

Accuracy

±0.5% of the value displayed,±0.3% or ±0.2% are selected

Medium temperature

Integrate type

-10℃~+80℃

Remote type

-25℃~+160℃

Ambient temperature

-20℃~+60℃

Conductivity

≥20μs/cm

Liner material

PFA,F46

Electrode material

Stainless steel SUS316,Hastelloy B,Hastelloy C,Titanium,Platinum-iridium

Electrode type

Conventional electrode,electrode can be lean down

Structure type

Integrate type, remote type,submersible type,ex-proof type

Protection class

IP65,IP68(Optional)

Ex-proof Mark

ExmdΙΙBT4

   Main electrode material of flowmeter

Electrode material

Application

316L

Applicable in water ,sewage and corrosive medium.Widely used in industies of petrol,chemisty,carbamide ,etc

Tungsten Carbide

Applicable in medium of no corrosive and low abration

Hastelloy B

Having strong resistance to hydrochloric acid of any consistence which is below boiling point.Also resistable against vitrol ,phosphate,hydrofluoricacid,organic acid ,alkali and non –oxidable salt.

Hastelloy C

Be resistant to oxidable acid such as nitric acid,mixted acid as well as oxidable salt such as Fe+++,,Cu++ and sea water

Ti

Applicable in seawater and kinds of chloride salt ,oxidable acid(including fuming nitricacid),organic acid ,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid hydrochloric acid) corrosion .But if acid contains antioxidant(such as Fe+++,Cu++) is greatly reduce corrosion.

Ta

Having strong resistance to corrosive mediums that is similar with glass .Almost applicable in all chemical mediums except for hydrofluoric acid ,oleum and alkali.

Platinum-iridium

Almost be applicable in all chemical mediums except for aqua fotis ,ammonium salt.
