dependable performance compensation type steam vortex flowmeter

FOB Reference Price:Get Latest Price
US $300-500 / Set | 1 Set/Sets dependable performance compensation type steam vortex flowmeter (Min. Order)
Supply Ability:
5000 Set/Sets per Year dependable performance compensation type steam vortex flowmeter
Port:
Qingdao/Shanghai/Tianjin/Dalian
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
AFT
Model Number:
LUGB
Medium:
Non-conductive liquid/steam;air;biogas;natural gas
Pressure:
1.6mPA, 2.5Mpa, 4.0Mpa and higher
Accuracy:
1.0%;1.5%
Power supply:
12-24VDC, 3.6V battery powered
Output:
4-20mA output;pulse output;Modbus
Material:
Stainless Steel;ss304;316L
Connection:
Flange: DN20-DN1000
Display:
LCD Digital
Protection Grade:
IP65
Product Name:
dependable performance compensation type steam vortex flowmeter
Packaging & Delivery
Packaging Details
dependable performance compensation type steam vortex flowmeter : Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Delivery Time
Within 5-7 days after receiving the payment

dependable performance compensation type steam vortex flowmeter

Steam vortex flowmeter Features:



1.Have temperature and pressure compensation function

2.Simple structure, no moving parts wear;

3. High accuracy and good reliability, don’t need on-site debugging;

4. Can be long-distance transmission of flow signals, and computer networking, centralized management;

5. Unique design of the amplification board, gas or liquid can be used.

Product Description





Technical Parameters



Measured Medium



Liquid, Gas, Steam



Specific Function

temperature and pressure compensation

Medium Temp.

-40~+200℃;-40~+280℃;40~+350℃





 Nominal Pressure

1.6MPa;2.5MPa;4.0MPa;64MPa(Other pressure can be custom)



Accuracy

±1.0%,±1.5%



Measuring range ratio

1:8-1:30(Standard air condition as reference), 1:8-1:40(Normal

Temperature as reference)



Flow range

Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s



Specifications

DN15~DN600

Material

1Cr18Ni9Ti



Reynolds number

Normal 2*104~7*106



Resistance coefficient

Cd≤2.6



Vibration acceleration

allowed





LUGB0.2g



Ex-proof class

IP65 ExiaIICT6 Ga

Ambient condition

Ambient Temp.

-40℃-65℃(Non Display on site); -20℃-55℃(Display on site

Relative humidity

5%~93%

Pressure

86-106kPa

Power Supply

12-24V/DC or 3.6V battery powered



Signal Output



Pulse frequency signal2-3000Hz,Low level1V,high level≥6V



Two-wire system 4-20 signal(isolated output),Load500



Company Information
  1. Time is gold ”for you and for us, we have professional team work who can make nice quality in short time.
  2. With us your money in safe your business in safe ”full refund in case of bad quality or delay delivery time , we also accept payment by paypal.

  3. We are the leader of flow meter manufacturer in china.
  4. Alibaba Assessed Gold Supplier.
  5. Inspected by the Inspection Institution of Bureau Veritas Certification.
  6. 100% QC inspection Before Shipping.
  7. Exports to many countries.



We have a professional technical team and sales team:

Certifications of steam vortex flowmeter

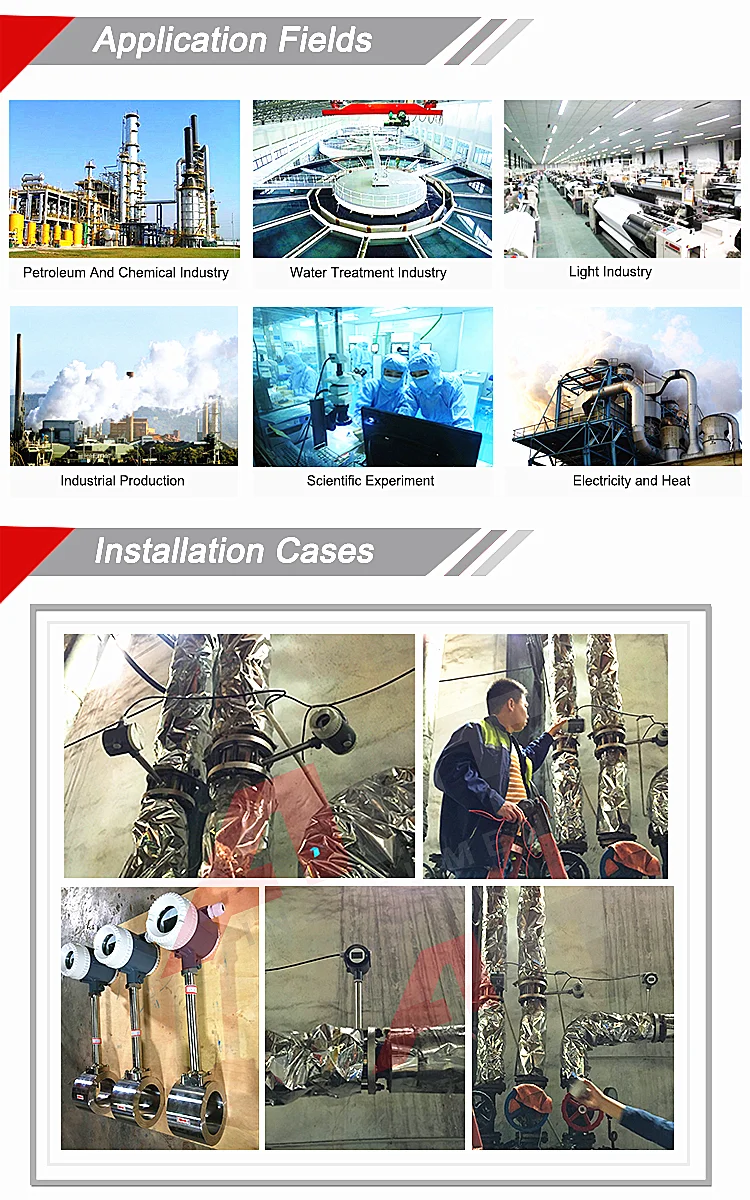

steam vortex flowmeter used in the industry and steam vortex flowmeter installed on site:
