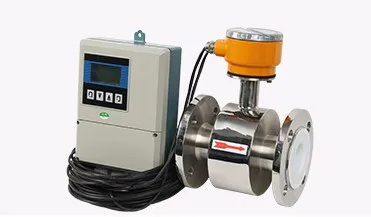

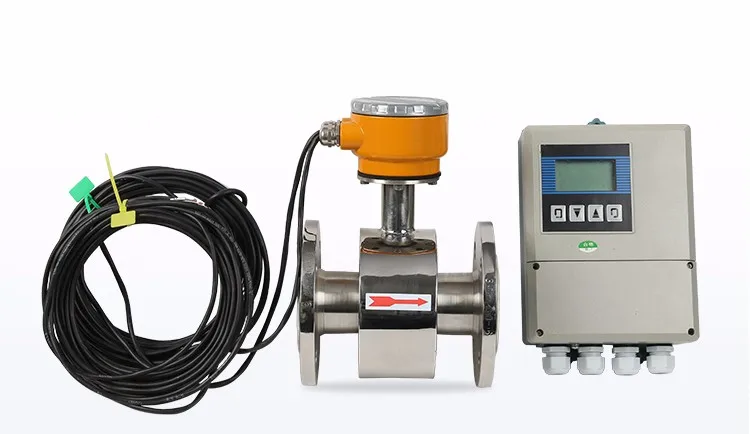

Hot sale split type juice beer electromagnetic flow meter

FOB Reference Price:Get Latest Price
US $100-500 / Set | 1 Set/Sets Hot sale split type juice beer electromagnetic flow meter (Min. Order)
Supply Ability:
5000 Set/Sets per Year Hot sale split type juice beer electromagnetic flow meter
Port:
Qingdao/Shanghai/Tianjin/Dalian
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
AFT
Model Number:
AFTLD
Accuracy:
0.5%;0.2%;0.3%
Output:
4-20mA /RS485/pulse/Hart/Profibus DP/Modbus
Electrode material:
316L/Hastelloy C22 / Platinum / Titanium / Tantalum
Material:
carbon steel;stainless steel ;SS304
Medium:
Liquid;sewage water;acid water;milk;beer
Power supply:
220V AC/ 24V DC/3.6V
Protection grade:
IP65 / IP 68(optional)
Ambient temperature:
-25~ +60℃
Connection:
Thread/Flanged /clamp
Product Name:
Hot sale split type juice beer electromagnetic flow meter
Packaging & Delivery
Packaging Details
Hot sale split type juice beer electromagnetic flow meter : Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Delivery Time
Within 5-7 days after receiving the payment
Why Choose Us

The maximum accuracy
is up to 0.2%

CE certification
through the enterprise

EMC standard
enterprise
Product Description


Product advantage

The precision is high.
Super large capacitance,
anti high voltage 450V,
PHILPS military level CPU,
independent AD chip,
EMC standard anti-jamming.

Electromagnetic Flow Meter

AFTLD series of intelligent electromagnetic flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,
Papermaking, water supply and drainage, food, medicine and other industries.
Product name
Hot sale split type juice beer electromagnetic flow meter
Main power
AC220V 50HZ / DC24V
Power consumption
<15W (And set with sensor supporting power consumption )
Display and push buttons
The big screen LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as alarm display ,four thin-film touch nubs ,which is used to data set .
Accumulator
Forward total quantity ,reverse total quantity








Output signal
Analog output
Bi-direction with two ways ,Isolation 0-10mA/4-20mA
Load resistor:0-10Ma;0-1.5KΩ;4-20Ma;0-750Ω
Frequency output
Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max output and the max output current is 50Ma when the transistor is turned on


Alarm output
Two outputs from the collectors of photoelectric isolate transistors are for alarm signals .The external voltage must be lower than 35V and the max output current is 250Ma when the transistor is turned on.Alarm status:Activates when the measured pipes are empty ,the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.



Pulse output
For pulse output in forward and reverse flow measurement ,upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 to 1.0 M3/P .The width of pulse can be set to 20ms or squired wave from automatically.The collector of transistor with photoelectric is open circuited.The external voltage must be lower than 35 V and maximum output current is 250Ma when the transistor is turned on .
Accuracy
±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Damping time constant
Continuous variable from 0-100 s (90%)can be selected by group
Communication
RS232 ,RS485 or HART Communication are selectable ,with lighting resistance
Power failure
An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Protection class
IP65
Ex-proof Mark
Exd IIBT4
Product Details


1. Display: LCD display, Cumulative flow, Instantaneous flow

2.Units: L/h, L/m, L/s, m3/h, m3/m, m3/s, GPM
3.Language: English, Italian, Spanish, Russian, Japanese, Korean, etc.




Multiple medium measurements.
This is best choose for food grade medium. Such as Milk, Beer, Juice and so on

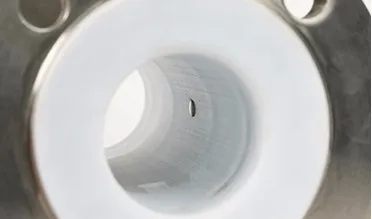

Liner material: PTFE, F46, PFA.




1. Circuit board undergoes aging test and vibration test
2. Surge protection device




Built-in three electrodes,
anti-static interference

Electrode material: 316L, Ti, Ta, Hastelloy B(HB), Hastelloy C(HC),Platinum-iridium, Stainless steel covered with tungsten carbide.

Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands.
