wholesale 1.6 mpa gas and steam vortex flow meter

FOB Reference Price:Get Latest Price
$200.00 - $500.00 / Sets | 1 Set/Sets wholesale 1.6 mpa gas and steam vortex flow meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
AFT
Model Number:
LUGB
Medium:
air/Gas/steam/nitrogen gas /pure water
Output:
4-20mA /pulse /analog /RS485
Pressure:
1.6mPA, 2.5Mpa, 4.0Mpa and higher
Power supply:
12-24VDC, 3.6V lithium battery
Material:
Stainless Steel;SS304
Accuracy:
1.0%;1.5%
Display:
LCD Digital/LED Local display
Protection Grade:
IP65
Connection:
Flange: DN20-DN1000
Product Name:
wholesale 1.6 mpa gas and steam vortex flow meter
Supply Ability
Supply Ability:
5000 Set/Sets per Year wholesale 1.6 mpa gas and steam vortex flow meter
Packaging & Delivery
Packaging Details
wholesale 1.6 mpa gas and steam vortex flow meter: Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Port
Qingdao/Shanghai/Tianjin/Dalian
Lead Time :
Within 5-7 days after receiving the payment
Why Choose us

wholesale 1.6 mpa gas and steam vortex flow meter

Product Description


vortex flow meter advantage

1. Simple structure, no moving parts wear;
2. High accuracy and good reliability, don’t need on-site debugging;
3. Can be long-distance transmission of flow signals, and computer networking, centralized management;
4. Unique design of the amplification board, gas or liquid can be used.

wholesale 1.6 mpa gas and steam vortex flow meter

Vortex flow meter the use of piezoelectric crystal   as  a  measuring  element  of  the flow  measurement  instruments  for a variety  of gas,  steam, liquid  flow measurement .LUGB series of vortex  flow meter specifications  from DN15 to DN300, vortex  flow meter  in accordance with the structural characteristics into full-tube vortex flow meter and plug-in vortex flow meter.
Product name
wholesale 1.6 mpa gas and steam vortex flow meter
Measured Medium
Liquid;Gas;steam;oxygen;biogas; air;overheat steam
Medium Temp.
-40~+200℃;-40~+280℃;40~+350℃
 Nominal Pressure
1.6MPa;2.5MPa;4.0MPa;64MPa(Other pressure can be custom)
Accuracy
±1.0%,±1.5%
Measuring range ratio









1:8-1:30(Standard air condition as reference), 1:8-1:40(Normal Temperature as reference)
Flow range
Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s
Specifications
DN15~DN600
Material
1Cr18Ni9Ti
Reynolds number
Normal 2*104~7*106


Resistance coefficient
Cd≤2.6
Vibration acceleration
allowed
LUGB≤0.2g
Ex-proof class
IP65 ExiaIICT6 Ga
Ambient condition
Ambient Temp.
-40℃-65℃(Non Display on site); -20℃-55℃(Display on site
Relative humidity
≤5%~93%
Pressure
86-106kPa
Power Supply
12-24V/DC or 3.6V battery powered
Signal Output
Pulse frequency signal2-3000Hz,Low level≤1V,high level≥6V
Two-wire system 4-20 signal(isolated output),Load≤500
Product Details

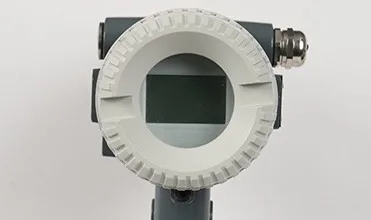

1.LCD display, display Cumulative flow,Instantaneous flow, Frequency,Electric current
2.Units: L/h, L/m, L/s, m3/h, m3/m, m3/s, GPM
3.Language: English, Italian, Spanish, Russian, Japanese, Korean, etc.

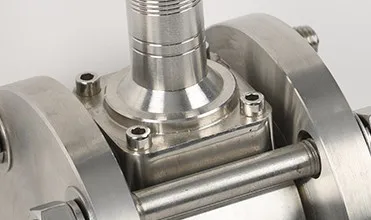

The sensor and the neck are connected by the sealing table to ensure the sealing of the flowmeter and prevent the occurrence of air leakage.

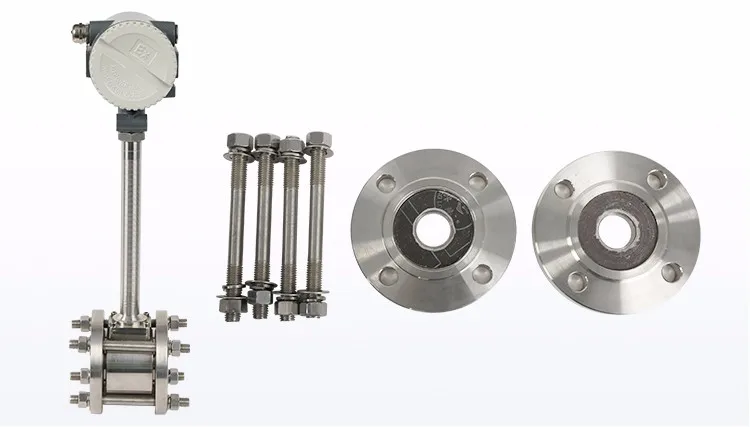

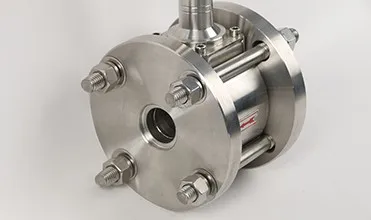

1.Connection style:Flange-clamped; Flange ,etc.
2.Carmen vortex working principle.
3.The material of flange and bolts-nuts is stainless steel.

Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands.

Project Case
More Products

SS304 Clamp-on type vortex flow meter

Compensated type 4-20mA output vortex flow meter

Integrated insertion type vortex flow meter

About Us

Kaifeng AFT Instrument Co., Ltd. specializes in the R&D, design, manufacture, sales, and service of electromagnetic flowmeters. It is a high-tech science and technology company. The electromagnetic flowmeters produced by our company have complete specifications and various forms. Can meet the different needs of different occasions, according to user requirements design. Vortex flowmeter is currently one of the major international flow meter products, widely used in petroleum, chemical, metallurgy, heating department. The flow of liquid, gas and steam is measured and calculated.
Begin with customer requirements and finally customer satisfaction. Your request is our goal, our enthusiasm hopes to carry out fruitful cooperation with customers at domestic and abroad, and to produce the best electromagnetic flow meter products for the needs of users. We sincerely invite new and old customers to visit us and negotiate cooperation.

Our company has strict quality control from product design,
raw material procurement and processing, manufacturing and assembly, inspection and verification to every stage of product release, scientific management, strict process, advanced equipment and Professional team as a guarantee of quality products.
Certificate

We have participated in many exhibitions, such as Beijing Multinational Instruments Exhibition, Shanghai International Instrument Exhibition, Canton Fair and so on. At the exhibition, many customers were met and orders were placed through subsequent exchanges and interactions. In addition, there are some customers who have met at the show and later came to visit our factory.
